Read the blog to better understand the fiber optic tool kit.

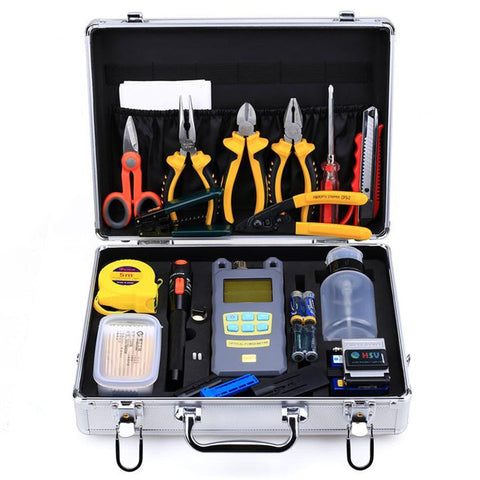

What is the Fiber Optic Tool Kit?
Fiber Optic Tool kits contains all of the latest popular fiber optic tools and consumable material necessary for epoxy and polish connector terminations (SC/ST/FC and LC connectors).There are five types of toolkits: Fiber optical installation, Tool kits, Fiber optical fusion splicing tool kits, Fiber optical grinding tool kits, FTTH tool kits and Fiber optical cleaning tool kits.
Fiber Optic Tool Kits, What Do You Need?
The fiber optic tool package is a very large category, together with instruments to complete a wide range of jobs in the fiber optic industry..So before you try further, please ask yourself: what do I need to do with this tool?
There are kits available for conventional epoxy and sharpening, connector termination, fast connector termination, fusion splicing, mechanical splicing, optic cleansing, fiber optic testing, and many more.
What do I want to do with this tool kit?
There are kits available for traditional epoxy and polishing connector termination, quick connector termination, fusion splicing, mechanical splicing, optic Cleaning, fiber optic testing and more.
So let's take a quick look at each type and its functions.

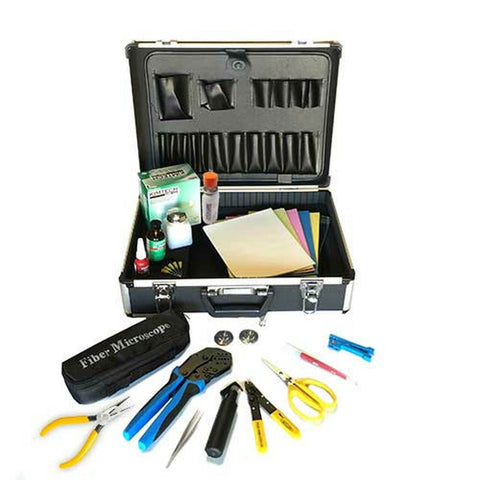

1) Traditional Epoxy and Polish Connector Termination Tool Kit
This type of package can generally be known as a common construction epoxy tool equipment..They embrace all of the instruments required for hand-polishing termination of epoxy optic connectors comparable to FC, SC, ST, LC and many others.
The following checklist shows all the necessary equipment that must be included.
· Fiber cable jacket stripper to take away outer jacket from optical cables
· Fiber stripper to take away fiber coatings (900um tight buffer or 250um UV coating layer) to reveal the naked fiber cladding
· Kevlar scissors to chop the yellow power member inside fiber jacket
· Fiber connector crimp tool for FC, SC, ST, LC
· Fiber scribe tool to scribe the naked fiber
· Epoxy for fixing the fiber contained in the connector, empty syringes for epoxy meting out into the connector
· Glass polish plate so you may place rubber polish pad on prime of it.
· Rubber polish pad so you can place the lapping movies on prime of it.
· Lapping movies (a number of grits included, usually 12um, 3um, 1um, and 0.5um)
· Connector hand polish pucks for FC, SC, ST, LC
· Heat remedy oven to remedy the epoxy (both 220V or 110V)
· Heat remedy oven to remedy the epoxy (both 220V or 110V)

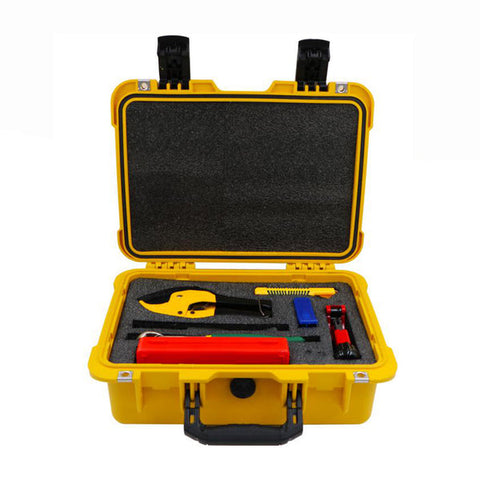

2) Quick Termination Connector Tool Kit
90% of fast termination connectors do not require sharpening. They have a manufacturing facility pre-polished fiber stub contained in the connector physique, all it's essential to do is strip your fiber, clear, cleave the fiber after which insert the cleaved fiber into the connector physique, with or with out meeting tool help, then lastly crimp the connector with specialized tool.
There is no common fast termination connector tool equipment, as every connector is otherwise designed by its producers and requires a proprietary meeting tool.
The main manufacturers out there embrace:
· 3M Hot Melt connectors
· Although 3M Hot Melt connectors are categorized as fast termination, they really require sharpening. The connectors have sizzling soft epoxy pre-injected within the body.You simply heat the connector, insert your fiber, write it, let it calm down, and then polish the connector..The course is similar to conventional epoxy polish connectors..However, the epoxy mixing and melting steps are eliminated, reducing the termination time to less than 2 minutes. The 3M Hot Melt connectors are a popular choice among installers.
· Corning Unicam Connectors
· Corning Unicam connectors are typical pre-polish and mechanical splice on connectors. They have a pre-polished fiber stub inside connector physique, with index matching gel inside..You simply strip, clear and cleave your fiber, then insert the cleaved fiber into the connector body and finally crimp it with the Unicam meeting tool.
· Tyco/AMP LightCrimp Plus connectors
· AMP LightCrimp Plus connectors are just like Corning Unicam. They additionally pre-polished and mechanical splice on, though otherwise designed and wishes, corresponding LightCrimp plus meeting tool. They are much less standard than Unicam connectors.

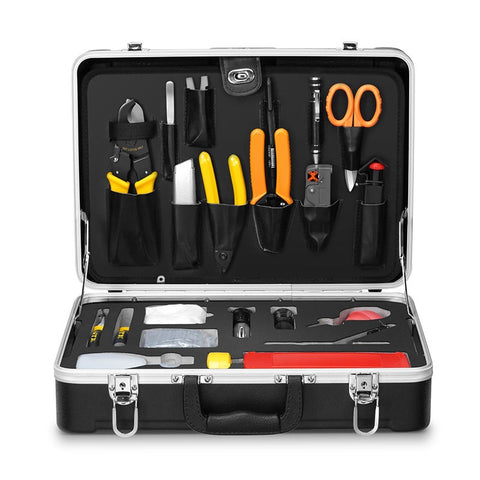

3) Fusion Splicing Tool Kit
The subsequent main type of fiber optic tool kit is for fiber fusion splicing. Fusion splicing is easier than fiber connector termination.So they need much less equipment. However, the instruments are generally quite expensive, especially the excessively precise fiber cleavers.
The following checklist shows the important gadgets in the fusion splicing tool kit.
· Fiber cable jacket stripper to take away outer jacket from optical cables
· Fiber stripper to take away fiber coatings (900um tight buffer or 250um UV coating layer) to reveal the naked fiber cladding
· Kevlar scissors to chop the yellow power member inside fiber jacket
· High precision fiber cleaver (that is the most costly merchandise)
· Fusion splice safety sleeves
· Fiber disposal unit to dispose the scrap fibers
· Other misc. Gadgets for cleansing comparable to skin wipes, isopropyl alcohol and many others.
· Optional visible fault locator to visually examine the standard of your splicing

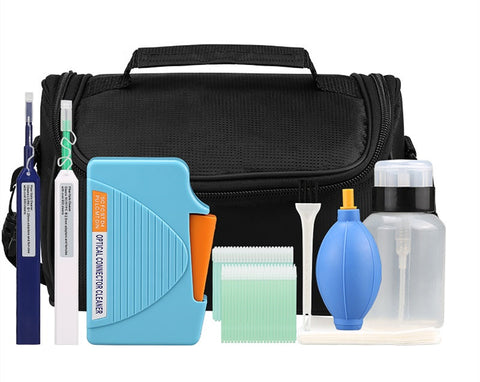

4) Optical Cleaning Tool Kit
Fiber optic cleaning tools are easy to use because they do not embrace instruments. However, only a few cleansing services are provided.
They largely embrace:
· Canned air (optic grade)
· 2.5mm foam swabs for cleansing FC, SC, ST connectors, mating sleeves and adapters
· 1.25mm foam swabs for cleansing LC and MU connectors, mating sleeves and adapters
· Lint free Kimwipes
· Pre-soaped alcohol wipes
· Fiber connector reel cleaners for FC, SC, ST, LC, MTRJ, and many others.
· Isopropyl alcohols

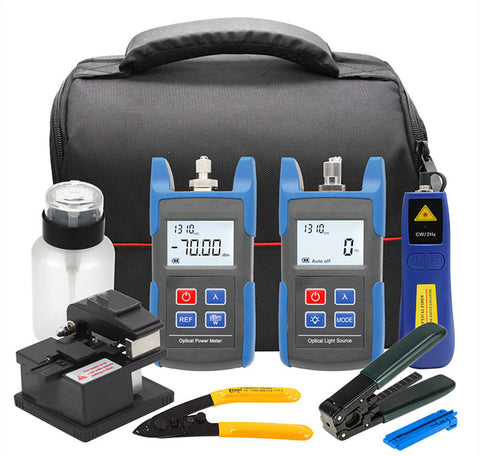

5) Fiber Optic Testing Tool Kit
Basic fiber optic testing usually includes insertion loss testing, visible fault location testing and non-compulsory return loss testing.
You should buy fiber testing packages with or without fiber stripping and cleaving instruments..The most important devices are literally the sunshine supply, the energy meter and the non-compulsory visible fault locator. You can at all times get fiber stripper, cable jacket stripper, and many others from instruments kits it's possible you'll already personal, comparable to an common epoxy connector termination tool equipment.
