T400S fusion splicer sets the standard for core alignment fusion splicing by incorporating a user-friendly interface with enhanced features to provide the most rugged and reliable fusion splicer in the market today. The new rugged construction adds improved reliability by resisting shock, dust, and rain, and drop test.
Sumitomo T-400S Features
- Capable of Fusion Splicing an Array of Fiber Types and Deployment Time Periods
- Competitive 6 Second Fusion Splicing and 24 Second Heat Shrinking Times
- Ruggedized Design
- Consistent Quality Low Loss Splicing
- Simple Operation by Brand-New User Interface for Quick and Easy Program Navigation and Analysis
- Handheld Operation for Fast Set-Up in Minimal Work Space Environments
- Lynx2 CustomFit Splice-On Connector Compatible
- FTTx Initiatives in One Machine

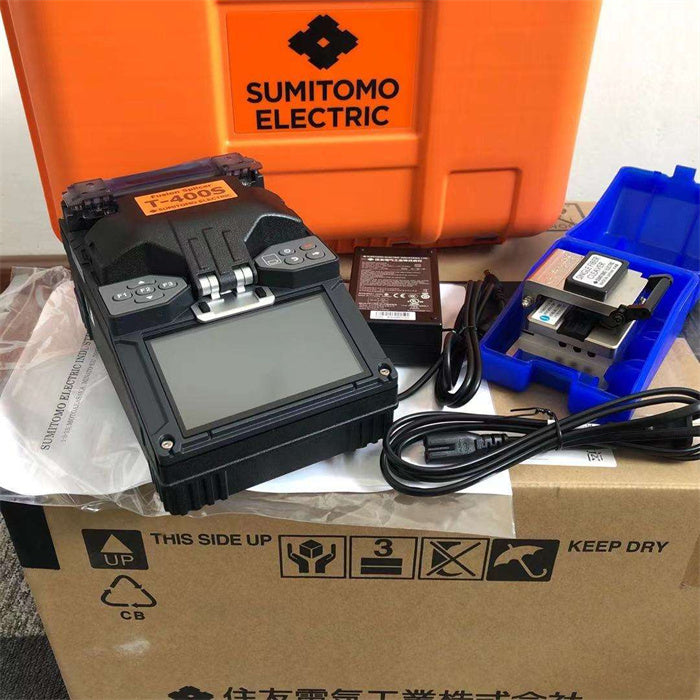

Standard packing
1. T-400S Fusion Splicer
2. Fiber Cleaver
3. Carry case
4. Original battery
5. AC adaptor
6. AC power cable
7.Instruction Manual
Specification
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Return Loss |
≥60dB |
|
Tension Test |
2.0N(200gf)(Standard) |
|
Typical splicing time |
8 sec |
|
Typical heating time |
25 sec |
|
Splicing Program |
50 groups |
|
Protection Sleeve Length |
20mm, 40mm, 60mm |
|
Language |
Chinese, English, French, Portuguese, Spanish,Italian |
|
Environmental Conditions |
-10 to +50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
|
Power Supply |
AC adaptor: 100-240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Battery: 12V voltage 8AH |
|
Monitor |
5 inches high resolution colorful LCD display |
|
Fiber image magnification |
Simultaneous X and Y views with 400 times magnification |
|
Storage of splice result |
6,000 groups of splice results |
|
Splicing Model |
Auto&Manual&Full Auto |
|
Optical Fiber Fixture |
3-in-1 cutting fixture |
|
Dimensions |
130(W)*135(D)*130(H) |
|
Weight |
1.74kg+0.38kg (battery weight)=2.12kg; Package G.W.: 6.03 kg |
