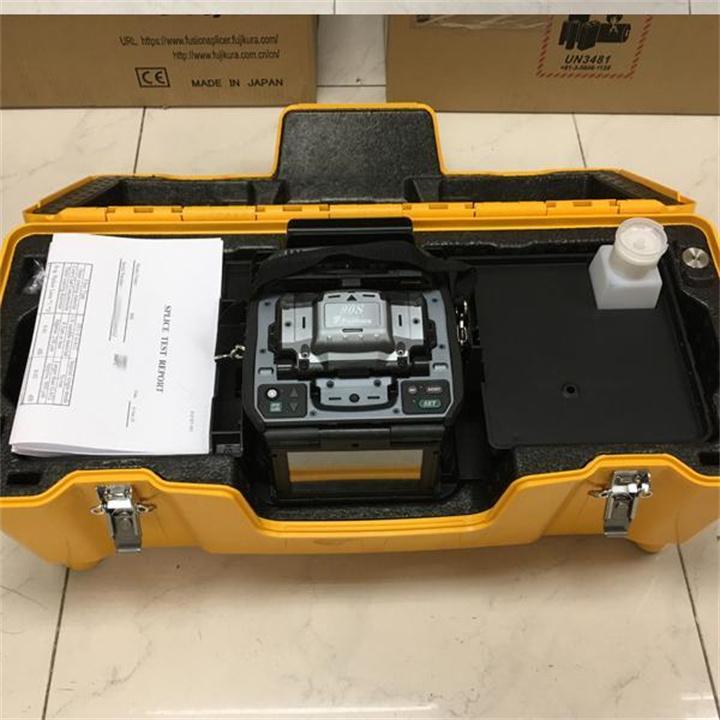

Fujikura 90S/90S+ fusion splicer without cleaver

Fujikura 90S/90S+ fusion splicer without cleaver

$5,500.00
$5,500.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Brand

Fujikura 90S/90S+  fusion splicer without cleaver

Fujikura 90S/90S+ fusion splicer is a fusion splicer with a high precision lenses, which provide an accurate core-to-core alignment. Also, these lenses allow the splicer to discriminate between fiber types.

fujikura 90s fusion splicer

FEATURES

  • Splicing time: 7-9 sec (SM FAST mode).
  • Heat time: 13-15 sec (for 60 mm sleeves).
  • Core alignment technology.
  • Advanced image processing technology.
  • Fiber discrimination function.
  • The faster automated features.
  • Time for opening wind protector is 80% lower comparing to the Fujikura 80S.
  • Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.
  • Easy fiber protection sleeve positioning.
  • The lid of the carrying case may be used as a work table.
  • Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.
  • The sheath clamp is compatible with loose tube fiber.
  • Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.
  • The tool can connect two cleavers simultaneously.
  • Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
  • Operation manual is installed into the splicer.
  • Battery life increased up to 500 recharge cycles.
  • Increased electrode lifetime – up to 5000 splicing cycles with one set.
  • 5-inch color TFT touch screen display.

TECHNICAL SPECIFICATIONS

Fiber alignment method active core alignment
Applicable fiber fiber type Single mode optical fiber
Multi mode optical fiber
cladding diameter 80 μm - 150 μm
Applicable coating sheath clamp coating diameter: max. 3 000 μm
cleave length: 5 mm - 16 mm
Fiber splice performance splice loss ITU-T G.652: avg. 0.02 dB
ITU-T G.651: avg. 0.01 dB
ITU-T G.653: avg. 0.04 dB
ITU-T G.655: avg. 0.04 dB
ITU-T G.657: avg. 0.02 dB
splice time SM FAST mode: avg. 7 sec - 9 sec
AUTO mode: 14 sec - 16 sec
Applicable protection sleeve sleeve type heat shrinkable sleeve
sleeve length max. 66 mm
sleeve diameter max. 6.0 mm before shrinking
Sleeve heat performance heat time 60 mm slim mode: avg. 9 sec - 10 sec
60 mm mode: avg. 13 sec - 15 sec
Fiber tensile test force approx. 2.0 N
Electrode life approx. 5 000 splices
Dimensions (W × D × H) 170 × 173 × 150 mm
Weight 2.8 kg (with battery)
Environmental condition temperature operate: -10°C - +50°C
storage: -40°C - +80°C
humidity operate: 0% - 95% RH non-condensing
storage: 0% - 95% RH non-condensing
altitude max. 5 000 m
AC adaptor input AC 100 to 240 V, 50/60 Hz, max. 1.5 A
Battery pack type rechargeable lithium-ion
output approx. DC 14.4 V / 6,380 mAh
capacity approx. 300 splice and heat cycles
temperature recharge: 0°C - 30°C
storage: -20°C - +30°C
battery life approx. 500 recharge cycles
Display LCD monitor TFT 5 inches with touch screen
magnification 200 to 300x
Illumination V-grooves LED lamp
Interface PC USB2.0 Mini B type
external LED lamp USB2.0 A type
approx. DC 5 V, 500 mA
ribbon stripper Mini DIN 6 pin
DC 12 V, max. 1 A
wireless Bluetooth 4.1 LE
Data storage splice mode 100 splice modes
heat mode 30 heat modes
splice result 20 000 splices
splice image 100 images
Screw hole for tripod 1/4-20UNC
Other features automatic functions splice mode select by fiber type analysis
discharge power calibration
wind protector: open/close
sheath clamp: open
heater lid: open/close
heater clamp: open/close
reference guide video and PDF file stored in splicer
sheath clamp easy sleeve positioning clamp
electrode replaceable without tool



PACKAGE CONTENTS

  • Fusion splicer Fujikura 90S — 1 pc.
  • Battery (BTR-15) — 1 pcs.
  • AC Adaptor (ADC-20) — 1 pc.
  • AC Power Cord (ACC-14, 15, 16 or 17) — 1 pc.
  • USB Cable (USB-01) — 1 pc.
  • Fusion Splicer Strap (ST-02) — 1 pc.
  • Spare electrodes (ELCT-16B) — 1 set.
  • Fiber Holder Set Plate (SP-03) — 1 set.
  • Carrying Case (CC-39) — 1 pc.
  • Work Tray Left (WT-09L) — 1 pc.
  • Work Tray Right (WT-09R) — 1 pc.
  • Work Tray J-Plate (JP-09) — 1 pc.
  • Tripod Screw (TS-03) — 1 pc.
  • Carrying Case Strap (ST-03) — 1 pc.
  • Alcohol Dispenser (AP-02) — 1 pc.
  • Quick Reference Guide (QRG-02-E, C or J) — 1 pc.
  • Single Fiber Stripper (SS-03 or SS-01) — 1 pc.
  • Optical Fiber Cleaver (CT-08) — no include.
  • Fiber Scrap Collector (FBD-05) — 1 pc.
  • Fiber Setting Plate (AD-10-M24) — 1 pc.
  • Case for Cleaver (CC-37) — 1 pc.
  • Hexagonal Wrench (HEX-01) — 1 pc.

Warranty : 1 year.
