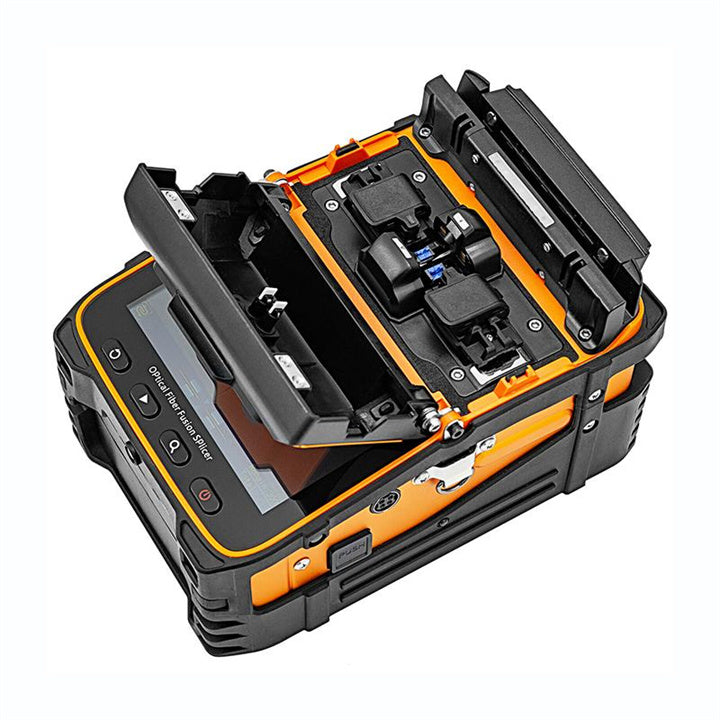

Signal Fire AI-9 Core Alignment Fusion Splicer
Signal Fire AI-9 Core Alignment Fusion Splicer
Couldn't load pickup availability
SIGNAL FIRE FUSION SPLICER AI-9
- Built-In Power Meter & VFL;
- New Generation Fusion Splicer: Six Motors Core Aignment Technology, Auto Focus;
- All Range Of Projects: 100KM Trunk Construction, FTTH, Security Monitory...
- Fast Response: Industrial Quad-Core CPU;
- User-Friendly: 5-Inch 800x480 Hight Resolution Screen, 300 Times Magnifications, Simple Operation but Intuitive;
- High Efficiency: 5Secs Splicing, 15Secs Heating.
Specifications
|
Applicable Fibers |
SM(G.652&G.657), MM(G.651), DS(G.657), NZDS(G.655) |
|
Splice Loss |
0.025dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS） |
|
Focus mode |
Auto focus |
|
Magnification |
300 for X or Y view, 150 for X or Y view |
|
Fiber alignment |
Core alignment Manual alignment |
|
Typical splicing time |
5S |
|
Typical heating time |
15S |
| Visual Fault Locator | Power: 15mw, 2hzflashing And Constantly Bright Mode |
| Optical Power Meter | Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm; Measuring Range: -70 ~ +6db; Absolute Error: <0.3db (-50dbm ~ +3dbm Range) |
|
Control technology |
Real-time control and calibration of fusion ARC |
|
Magnification |
300 for X or Y view, 150 for X or Y view |
|
Return loss |
Better than 60DB |
|
Fiber diameter |
Cladding Diameter 80-150μm，Coating Diameter 100-1000μm |
|
Fiber Cleave Length |
Coating less than 250µm: 8-16mmCoating less m250-1000μm:16mm |
|
Heat shrinkable tube |
60mm, 40mm |
|
Tension Test |
Standard 2N |
|

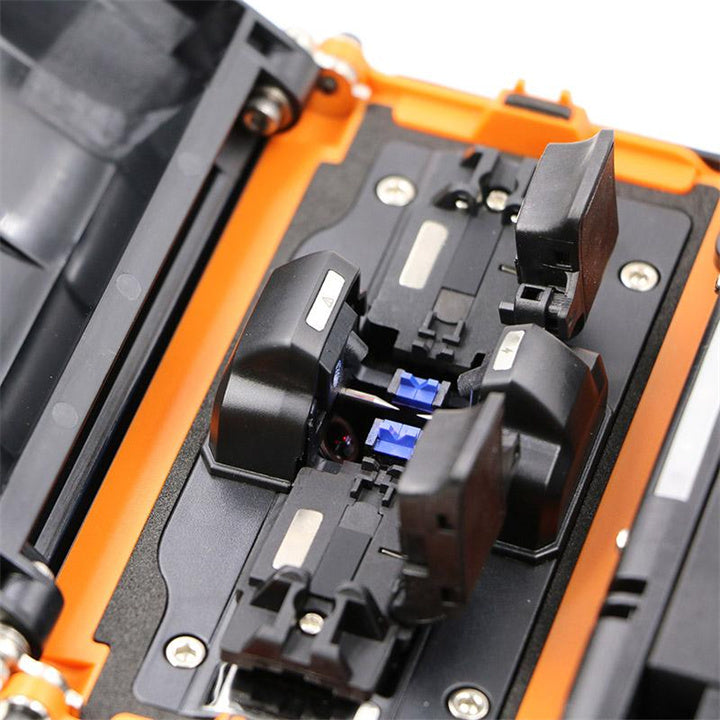

Fiber holders |
Multi function holders, Applicable for SM, MM, bare fiber, pigtail |
|
Screen |
5.1 inch TFT color display |
|
Splicing record storage |
Synchronize to the phone, the server to cloud storage unlimited |
|
Built-in battery |
7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times |
|
Power supply |
Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
|
Operating Conditions |
Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
|
Lighting |
External |
--------------------
Synchronous Operation | Speed Response | No Jammed | Super Experience
--------------------
Adapt to Desert, Snow, High Altitude, High Temperature And Other Bad Weather
--------------------
Charging Time ≤ 3.5Hours | Continuous Splicing & Heating About 240 Times
--------------------
Can Charge the Phone
--------------------
Splice SM, MM, Bare Fiber, Pigtail, Rubber-Insulated, Multi-Fiber Cable...
--------------------
Convenient for Night Operation
--------------------
Ultra Portable Design, Making the Outdoor work Easy and Comfortable
Package Includes
Fusion Splicer AI-8C | Fiber Cleaver | Wire Stripping Pliers
Miller Stripper | LED Light | Hex Key | Carrying Case
Fiber for ARC Calibration | Straps | Power Adapter | Alcohol Bottle
Brush | User Manual
