Fiber Inspection Probe with Display Cleaning Kits Fiber Optic Cleaner Pen Connector Cleaning Cassette
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection.

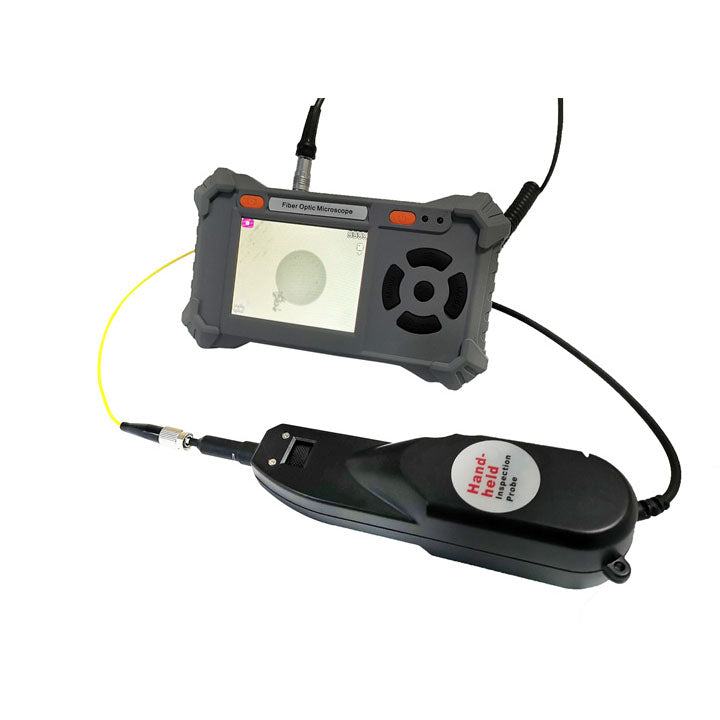

The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic communication systems.
Description
- 3.5-inch TFT color display
- Well-centered, high resolution image
- Image capture and storage
- Instant video recording
- 250x Magnification
- 4x Digital zoom
- Standard tips (SC, FC, ST, LC, MU, E2000)
- USB plug-and-play
Fiber Inspection Probe
|

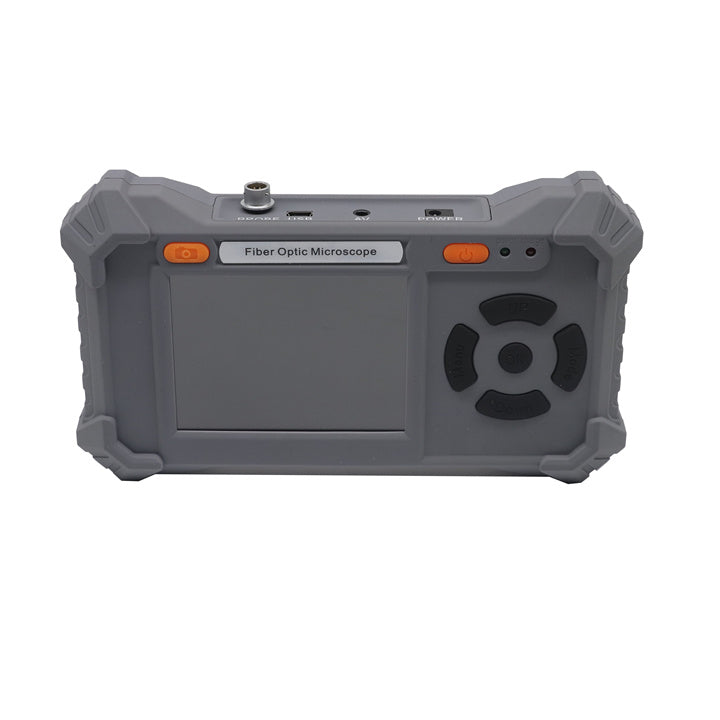

Mainframe |
|
|
Display |
3.5” TFT-LCD, 320 x 240 pixels |
|
Dimensions |
170mm x 100mm x 40mm |
|
Weigh(including battery) |
200g |
|
Power Supply |
Replaceable battery or universal input 5V DC adapter |
|
Battery |
Rechargeable Li-Ion, 3.7V / 1450mAh |
|
Battery life |
> 3 hours (continuous) |
|
Charger/AC adapter |
US, EU, UK and Australian versions available |
|
Image / Video Storage |
8GB SD card |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-30°C to 70°C |
|

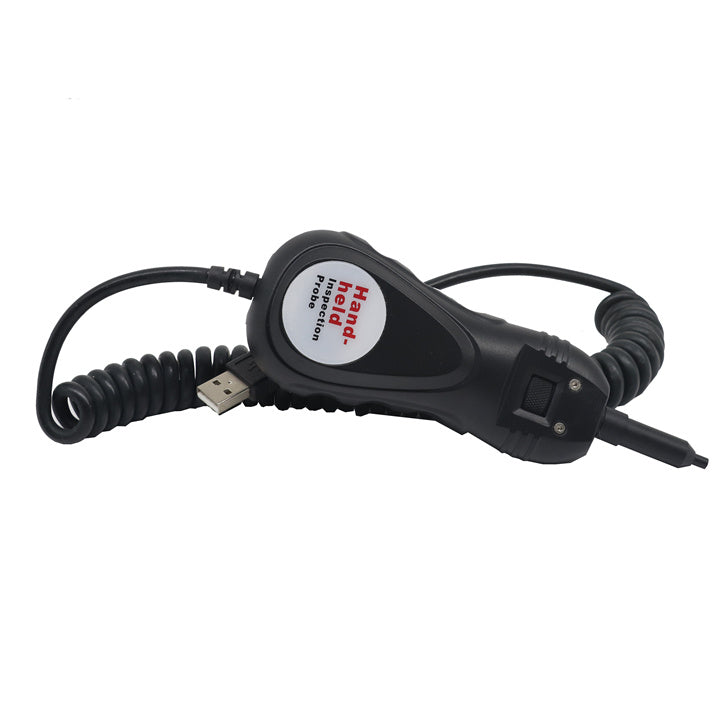

Inspection Probe |
|
|
Magnification |
400X (9” monitor); 250x (3.5”monitor) |
|
Detection Limit |
0.5μm |
|
Focus Control |
Manual , in-probe |
|
Principle |
Bright field reflected light microscopy |
|
Dimensions |
180mm x 40mm x 30mm |
|
Weight |
200g |

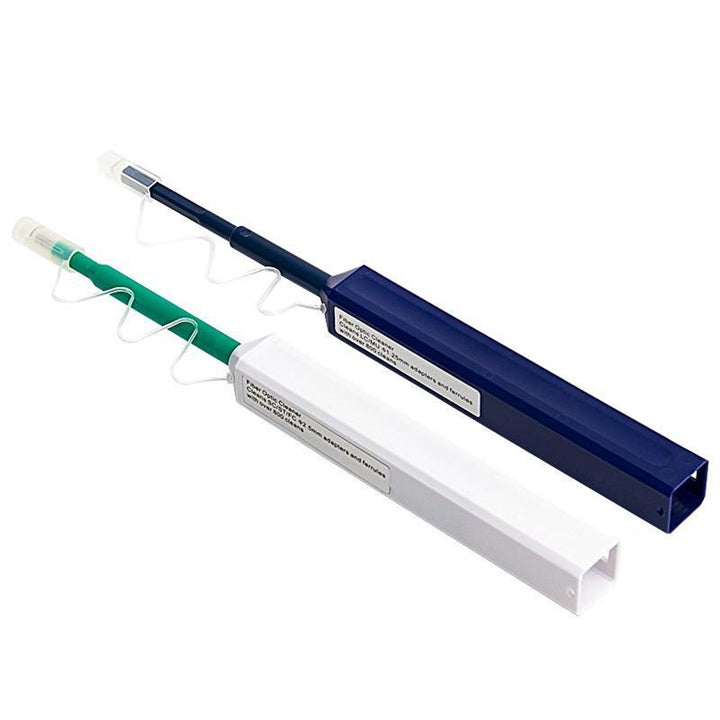

Fiber Optic Cleaning Pen
Features:
- Disposable with 800+ cleanings per unit
- Easy pushing motion engages connector and initiates cleaner
- Made from antistatic resins
- Cleaning micro fibers are densely stranded and debris free
- Extendable tip reaches recessed connectors

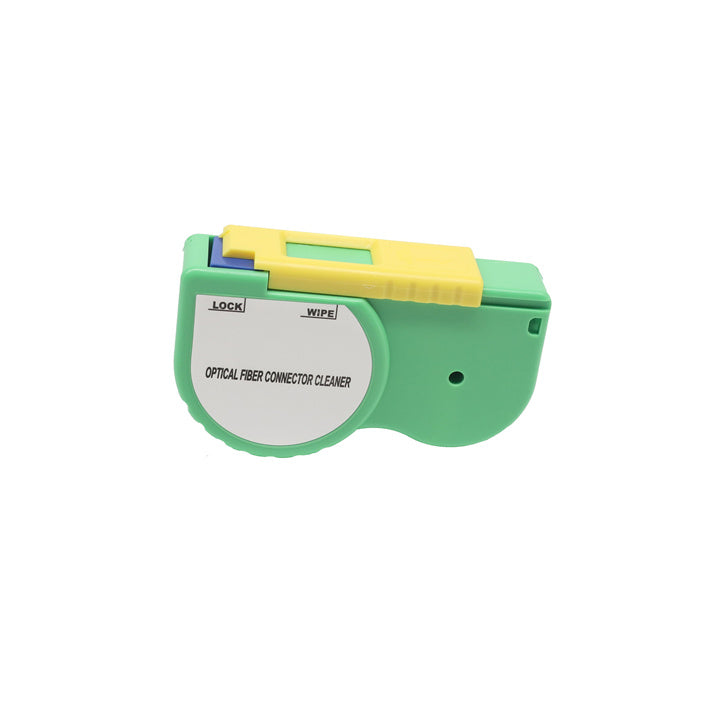

Fiber Optic Cleaner Cassette
|
Product Name |
Cleaner Cassette |
|
Connector |
SC,FC,ST,MU,LC,MPO,MT,MTRJ |
|
Cleaning time |
500 times |
|
Size(mm) |
W 115 × H 79 × D 32 |
|
Replacement Reel |
ATC-NE-NS 10 reels/set |
|

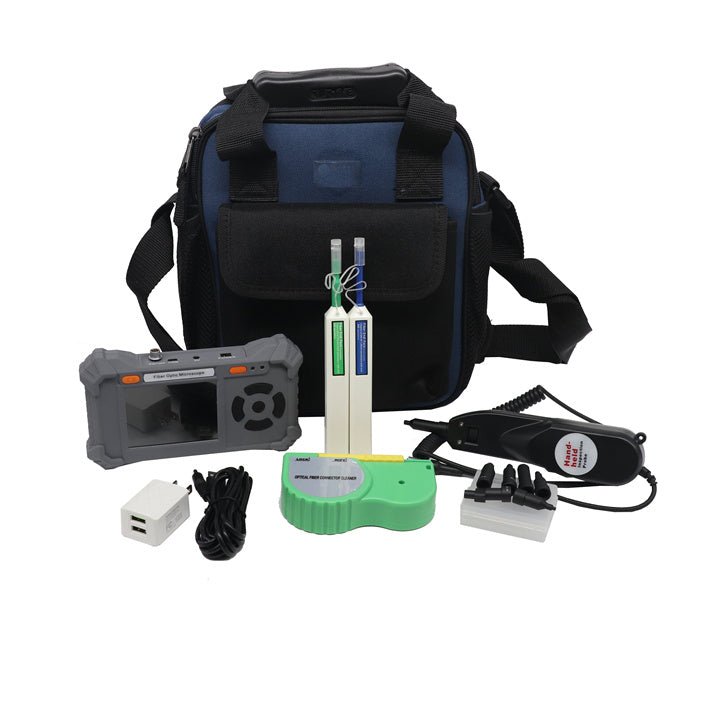

Standard Accessories: |
|
Inspection Probe x 1 |
|
Mainframe x 1 |
|
AC power adapter/battery charger x 1 |
|
Rechargeable battery pack x 1 |
|

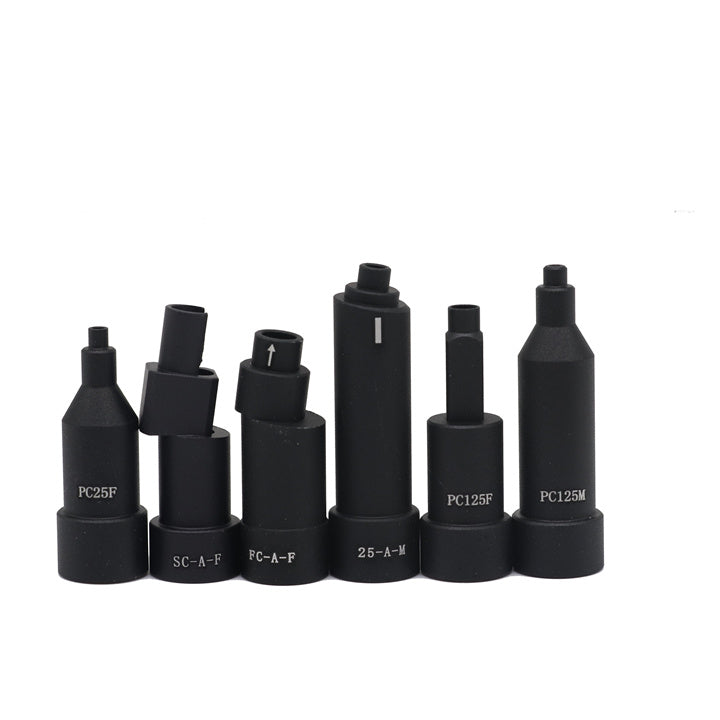

2.5mm tip for PC male connectors x 1 |
|
1.25mm tip for PC male connectors x 1 |
|
Tip for SC / FC PC female connectors x 1 |
|
Tip for LC PC female connectors x 1 |
|
Tip box x 1 |
|
User Manual x 1 |
|
Carrying Bag x 1 |
