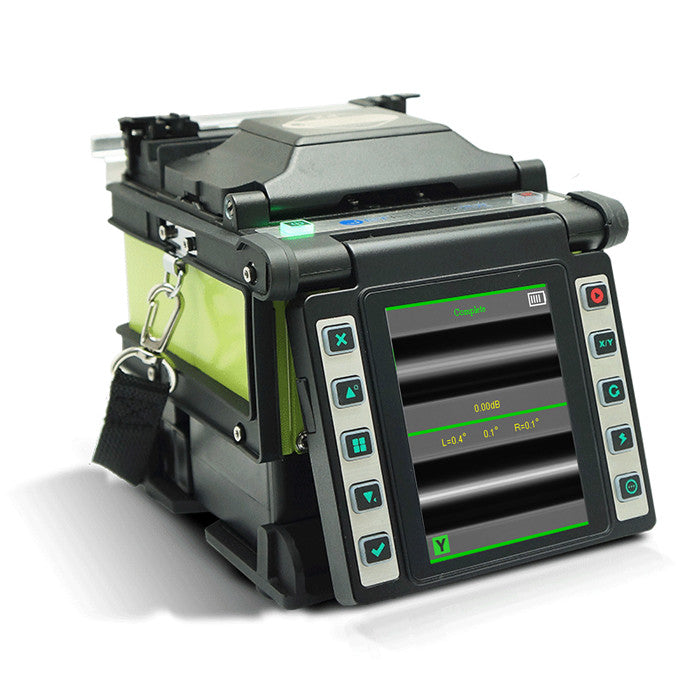

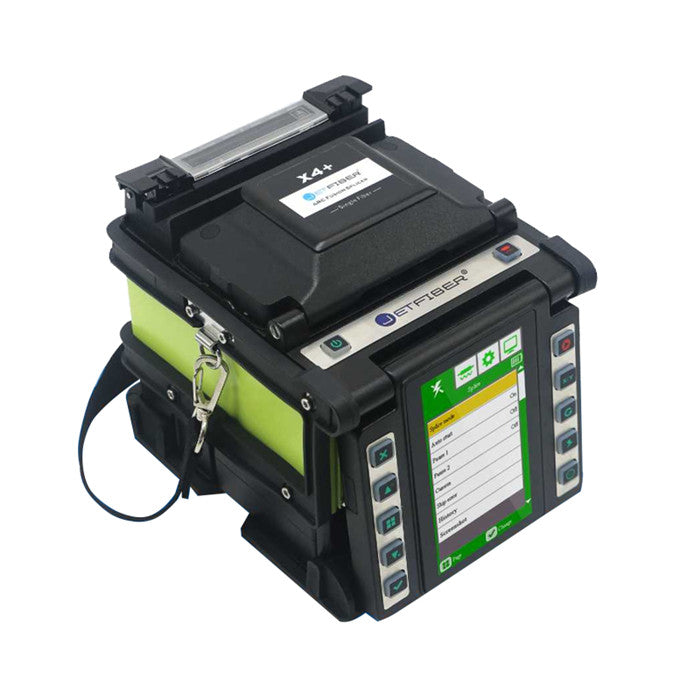

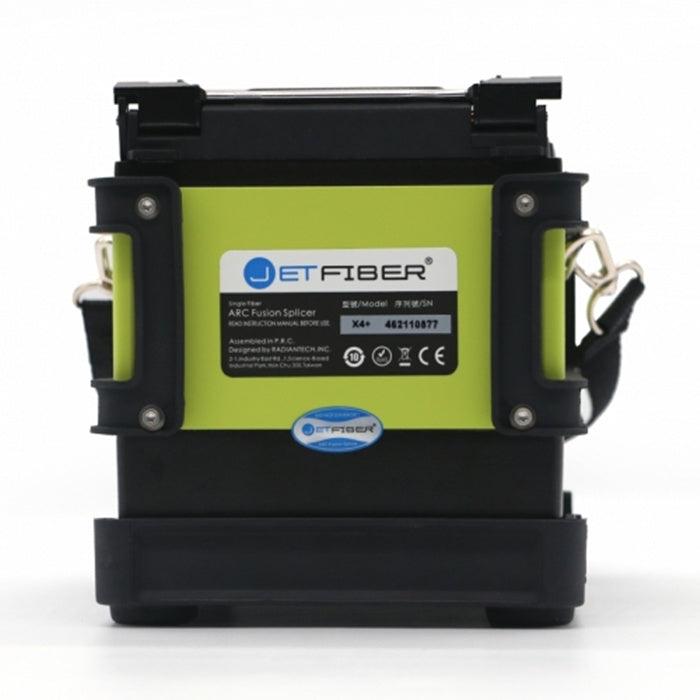

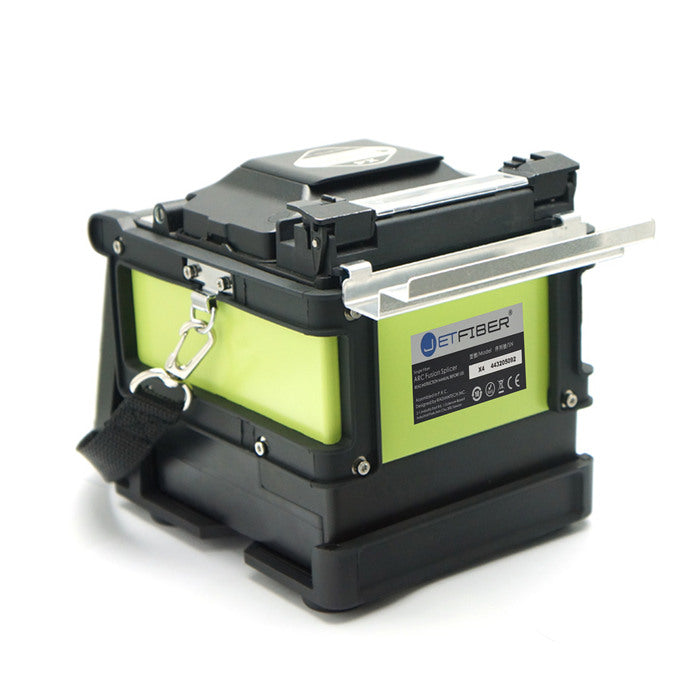

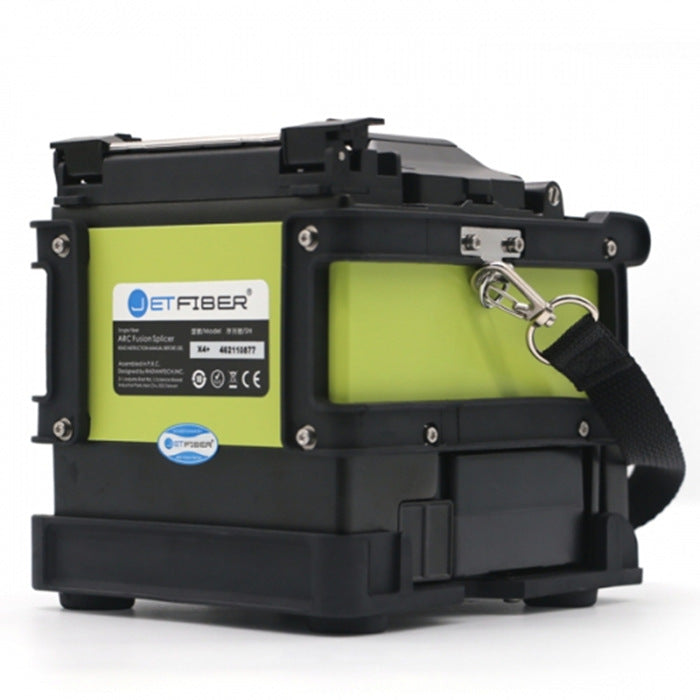

Fiber Optic Splicing Machine Jetfiber X4+ 4 Motors Fusion Splicer
Fiber Optic Splicing Machine Jetfiber X4+ 4 Motors Fusion Splicer
Regular price
$2,500.00
Regular price
$2,750.00
Sale price
$2,500.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Best Price Fiber Optic Splicing Machine Jetfiber X4+ 4 Motors Fusion Splicer
Key features
1. 1 sec topspeed boot time.
2. 6 sec. splicing time.
3. 12 sec. Heating timie.
4. Max. 300X fiber magnification.
5. Smart-connected APP.
6. Splicing record management.
7. Intelligent burglar-resisting system.
8. Three-dimensional protection cover.
9. Reduce risk and unpredictability.
10. Handy.lightweight.anti-dropping solid and durable.
11. Hi-speed USB connection internet remote control.
12. Splice loss: SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB,BI:0.02dB.
13. 4 motors and flexible V-groove alignment system.
14. 5600 mAh battery capacity over 250 times splicing and heating.
15. 1 year warranty and lifetime maintenance.
Specification
|
item
|
value
|
|
Model Number
|
X4+
|
|
Type
|
Fiber fusion splicer
|
|
Place of Origin
|
Taiwan
|
|
Brand Name
|
Jetfiber
|
|
Use
|
FTTX
|
|
Warranty Time
|
one year
|
|
Network
|
None
|
|
Type
|
Fiber fusion splicer
|
|
Place of Origin
|
Taiwan
|
|
Warranty Time
|
one year
|
|
Power supply
|
AC100-240V , 50/60HZ
|
|
Electrode life
|
5000 splices
|
|
Battery capacity
|
5600mAh
|
|
Wavelength
|
1310/1550nm
|
|
Splice loss
|
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZ DS:0.04dB, BI:0.02dB
|
|
Fiber view
|
Two cameras observation, 4.1 inch high-light color screen
|
|
Splicing programs
|
Max.100
|
Packing & Delivery

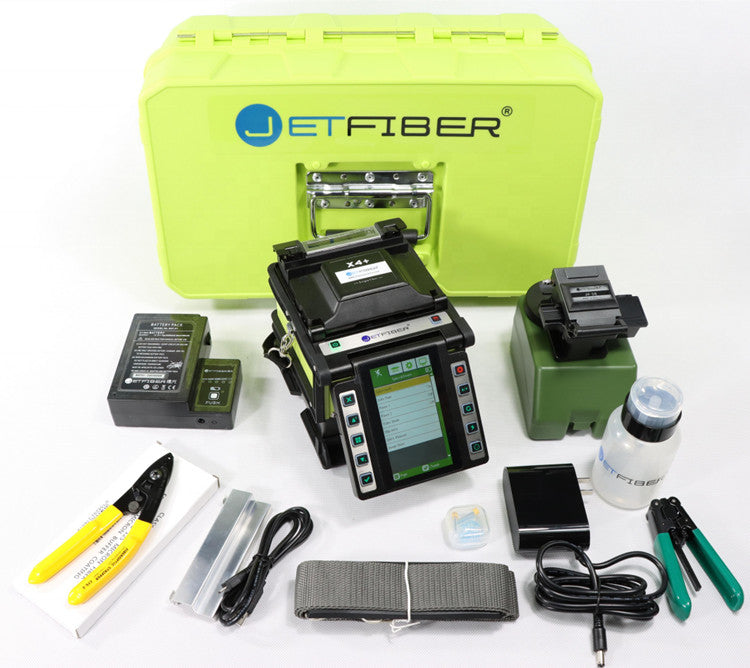

Each set packed in a carrying case then by carton Jetfiber X4+ 4 Motors Fusion Splicer, in stock
