Tumtec V9+ Core Alignment Fusion Splicer
Tumtec V9+ Core Alignment Fusion Splicer
Couldn't load pickup availability

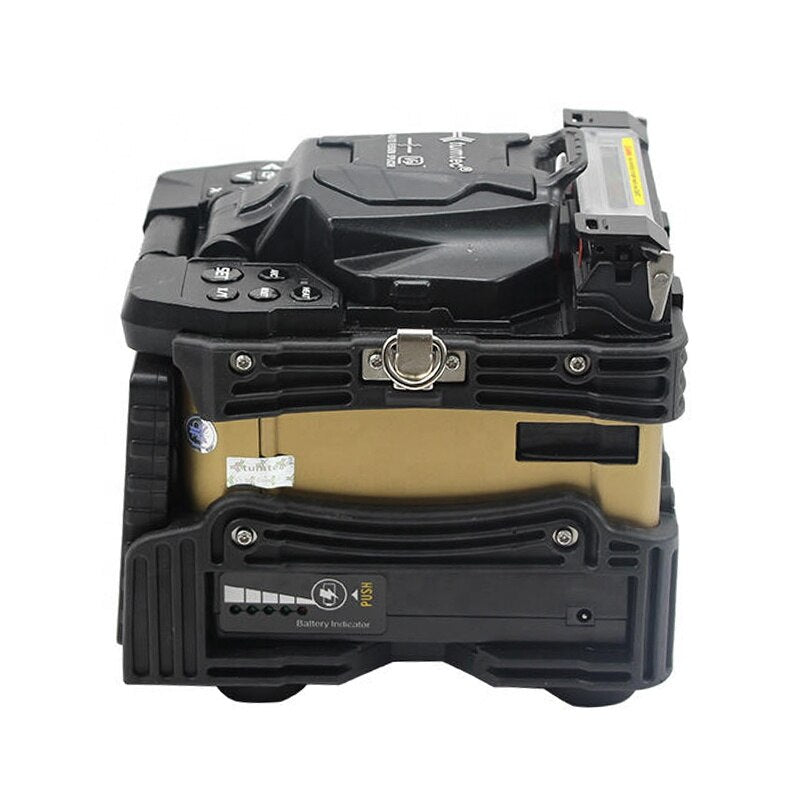

TUMTEC CORE ALIGNMENT FUSION SPICER V9+
- DACAS-Digital Analysis Core Alignment Systems with 6 Motors
- German CNC Technique and Integrated Fiber-Adjust Frame, which Makes Performance Much Stable
- Fiber Type Identification Function
- V-Groove Precise Alignment, High Quality and Low Loss
- Auto-Splicing Mode, Using Friendly Design
- 5" High Resolution Color LCD Touch Screen, with Anti-Reflective Coating for Excellent Visibility
- Packed with Detachable 5299mAh Battery, More than 250 Times of Splicing and Heating
- Dust-Proof, Water-Proof, High-Temperature Resistance, Adapting to Various Altitude and Harsh Environment
- 3 High-Power White LEDs and Illuminated Keypads Simplifies Your Work at Night
- Detachable Multifunction Fixture, Suitable for Various Fiber Type
- Built-in Japanese Components and Korean Chipset
Specifications
Dimension |
130W*170L*170H (excluding rubber bumper) / 140W*170L*176H (including rubber bumper) |
Weight |
2233G (with battery) / 1853G (without battery) |
Number of Fiber |
Single |
Applicable Fibers |
SM(ITU-T G.652& G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655) |
Compatible Fiber/Cable |
0.25 - 3.0mm/lndoor Cable |
Cleaved Length |
Diameter: 0.125 - 1 mm/Cleave Length: 5-16mm |
Diameter |
Cladding: 80 -150 pm / Coating: 100 - 3000 pm |
Splicing Mode |
Pre-set 41 splicing modes, max 100 modes |
Heating Mode |
Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
Typical Splice Loss |
SM: 0.02dB / MM: 0.01 dB/ DS: 0.04dB / NZDS: 0.04 dB/ G.657: 0.02dB (ITU-T Standard) |
Return Loss |
> 60dB |
Lighting |
3 White LEDs |
Splicing Time |
Quick mode: 6s |
Estimated Splice Loss |
Available / Accuracy: < 0.1 dB |
Heating Sleeve Length |
20 - 60 mm |
Heating Time |
Quick heating time: 13s, typical heating time: 30s |
Results Storage |
20000 latest records & 200 images |
Tension Test |
1.96 - 2.25N |
Operating Condition |
Operating Altitude: 0 - 5000m above sea level, 0 - 95% relative humidity, - 10 ~ 50°C Max Wind 15m/s |
Storage Condition |
0 〜95% relative humidity, -40 ~ 80°C |
Display |
90° bi-directional view, 5.0" Color High Resolution Display |
Fiber View & Magnification |
X, Y, XY, X/Y: 500X Magnification |
Power Supply |
AC Input 100 - 240V, 50/60Hz / DC Input 9-15V |
No. of Splice/Heating with Battery |
5200mAh Battery Capacity, Typical 250 times (Splice + Heat) |
Operating Methods |
Button/Touch Screen |
Automatic Calibration |
Automatic arc calibration by air pressure and temperature |
Electrode Life |
5000 arcs |
Terminal |
Mini USB 2.0 |
Package Includes
Fusion Splicer V9+ | Fiber Cleaver | Battery | Back-up Electrodes
Power Adapter | AC Power Cable | Cooling Tray
Carrying Case | Carrying Strap | User Manual | Splicing Test Report
Fiber Stripper | Drop Cabble Stripper | Alcohol Bottel
