10mW VFL Visual Fault Locator Pen-Type Visual Fault Finder

10mW VFL Visual Fault Locator Pen-Type Visual Fault Finder

Regular price $19.99
Regular price $23.00 Sale price $19.99
Sale Sold out
Shipping calculated at checkout.

10mW VFL  Visual Fault Locator Pen-Type Visual Fault Finder

SM-V10 VFL is designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables;Finding the faults of OTDR.

10mW VFL  Visual Fault Locator Pen



Price 10mW VFL



10mW VFL  Visual Fault Locator
Best Seller Visual Fault Locator Pen
Wholesale 10mW VFL

Specifications

Type

 Visual fault locator or Pen-type Visual Fault Finder

Central Wavelength

650nm+-10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power

Optional choice for 1mw, 5mw,10mw 20mw 30mw on actual needs

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2 AAalkaline batteries

Battery Operating Time

60 hours

Operating Temperature

-10~+45 (oC)

Storage Temperature

-40~+70 (oC)

Dimension (mm)

15X180

Weight

120g(Without battery)

Remark: Colors can be customized on request when meets certain qty!

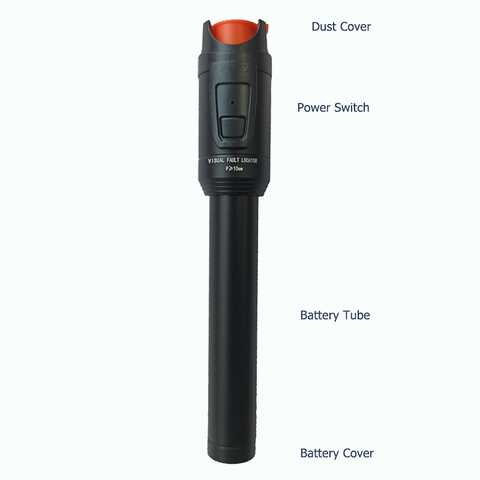

Visual fault locator Standard Packages

Best Seller Visual Fault Locator VFL 10mW

MODEL

INCLUDES

SM-V10

Main Unit (Original color),  User Manual,

Cotton swabs and Soft Carrying case



Warranty : This is a consumable without warranty.

If you need big quantity or
any question please do not hesitate contact us email jack@splicermarket.com .
