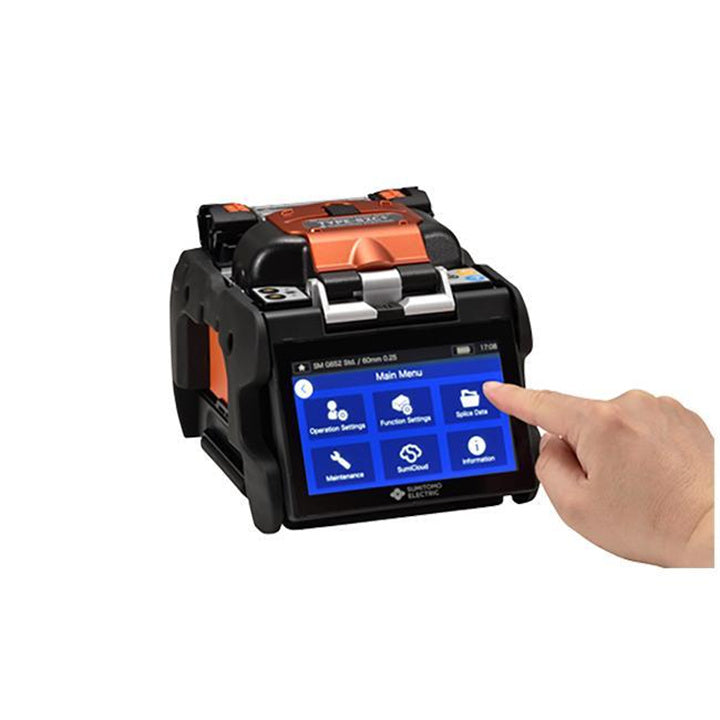

Fusion Splicer Sumitomo Type-82C/82C+ ultra fast splicing machine

Fusion Splicer Sumitomo Type-82C/82C+ ultra fast splicing machine

$5,089.00
$6,300.00 $5,089.00
Sale Sold out
Shipping calculated at checkout.

 Fusion Splicer Sumitomo Type-82C/82C+ ultra fast splicing machine

fiber splicing machine sumitomo type-82c

Sumitomo Type-82C/82C+ is a direct core monitoring fusion splicer for ultra fast splicing in every environment.

FEATURES

  • Ultra fast splicing: 5 sec.
  • Ultra fast heating: 9 sec.
  • Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
  • Automatic arc calibration.
  • G.657 fiber auto-splice function.
  • Supports bi-directional splicing operation.
  • Dust-resistant, water-resistant and shock-proof.
  • Compact & lightweight (only 1.9 kg).
  • Touch-screen operation.
  • Upgrades software via internet.
  • Remote interactive maintenance via internet.
  • Equipped with onboard user training video.

Compact, Lightweight & Faster

  • 2.2kg with battery for 300 splice & heat cycles
  • Faster 5s splice in SM Quick Mode
  • Reduced 9s heat shrink time
Splicing Machine Sumitomo Type-82c Price

Brand-new touch panel and UI

  • Wide and high resolution touch panel -5" touch screen color LCD display
  • Smartphone-like easy operation



sumitomo type-82c price



Video Tutorial

  • Video tutorial to help splicing job
  • SumiCloud™ App. to watch tutorial video on smartphone
Sumitomo Fibre Splicer for sale



High Environmental Durability

  • IPx2 water resistance
  • IP5x dust resistance
  • Splice at 50°C
  • Work at 6000m
  • 76cm drop on 5 faces
Sumitomo 82C+ Core Alignment Fusion Splicer

Dual ovens with flexible clamps

  • Independent
  • Fast-heating 9s
  • Productive
  • Programmable
  • User selectable clamp operation

Wireless LAN
connectivity to
SumiCloud™

  • The world-first fusion splicer with Wireless LAN Connectivity
  • SumiCloud™ smartphone App. to support splicing job
  • WLSD card brings SumiCloud™ services to your splicer via our smartphone App.
Best Price Sumitomo 82c+

TECHNICAL SPECIFICATIONS

Optical fiber requirements
Material
 Silica glass
Profile types SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF
Fiber diameter Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm
Applicable fiber or cable size up to φ1,000 µm Drop cable (2.0x3.1 mm), Indoor cable (2.0x2.0 mm)
Cleave length 5~16 mm 10 mm
Standard performance
Splice loss (typical) SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB
Splicing cycle time (typical) 5 sec. (Quick mode), 7 sec. (SMF standard mode), 7 sec. (Auto mode)
Heating cycle time (typical) 9 sec.
Splice & Heat cycles Approx. 300
Fiber view & magnification Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view
Splicing programs Max. 300
Heating programs Max. 100
Functions
Loss estimation Provided
Splice image capture / Splice data storage 200 images / 10,000 splice data
Proof test 1.96N (200 gf)
Universal clamps for 250µm, 900µm tight & loose buffer fiber Provided
Reversible coating clamps Provided
Dual automatic independent heaters Provided (US patent 7,412,146)
User-selectable heater clamp operation Provided
Onboard user training video Provided
Automatic arc calibration Automatically compensates for environmental condition changes
Arc test Provided
Display of remaining Splice & Heat cycles Provided (Battery mode)
Remote interactive maintenance Provided
Terminals
DC output DC12 V (for JR-6)
USB port USB 2.0 (mini-B type)
Storage media SD / SDHC memory card
Power supply
AC input 100 ～ 240V, 50 / 60 Hz (ADC-1430)
DC input 10 ～15 V
Battery module Li-ion 10.8 V, 6,400 mAh (BU-16)
Mechanical Parameters
Monitor
 5.0" touch screen color LCD display
Size
 128(W) x 154(D) x 130(H) mm (without anti-shock rubber)
Weight
 1.9 kg (without battery), 2.2 kg (with battery)
Electrode life 3,000 arc discharges
Environment
Operating conditions Altitude 0～6,000 m, Temperature -10～+50°C, Humidity 0～95% (non-condensing), Wind velocity up to 15 m/s
Storage conditions Temperature -40～+80°C, Humidity 0～95% (non-condensing), Battery -20～+30°C (long term)
Dust resistance Equivalent to IP5x (Operates normally after 8 hours in a dust chamber (containing dust of particle size 25 µm or below
Water resistance Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°)
Shock resistance Drop from 76cm on 5 faces (excluding top face)
