Joinwit JW3109 High Quality Wavelength 1310&1550nm Portable Fiber Optical Light Source
Joinwit JW3109 High Quality Wavelength 1310&1550nm Portable Fiber Optical Light Source
Couldn't load pickup availability
Joinwit JW3109 High Quality Wavelength 1310&1550nm Portable Fiber Optical Light Source
Description
JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
1) Provides 1~4 output wavelengths which can be optional according to customer’s needs
2) CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
3) High stability of the output power
4) Stable output wavelength

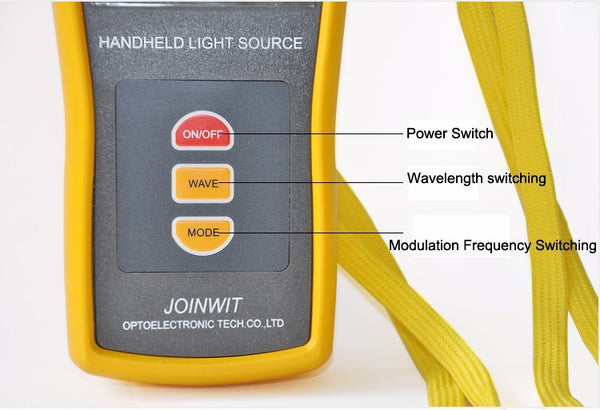

5) Backlight LCD display supports night operation
6) Compact size and decent appearance
7) Large LCD, easy operation
8) Alternative 10 minutes Auto-off function conserving battery life
Applications
1) Maintenance in Telecom
2) Maintenance CATV
3) Fiber Optic Lab Testing
4) Other Fiber Optic Measurements
Technical Specification
|
Type
|
JW3109
|
|||
|
Wavelengths(nm)
|
650
|
1310/1550
|
850/1300
|
850/1300/1310/1550
|
|
Emitter Type
|
FP-LD,LED or others please specify
|
|||
|
Typical Output Power (dBm)
|
0
|
-7dBm for LD, -20dBm for LED
|
||
|
Spectral Width(nm)
|
1. ≤10
|
|||
|
Output Stability
|
±0.05dB/15mins; ±0.1dB/ 8hours
|
|||
|
Modulation Frequencies
|
CW,2Hz
|
CW,270Hz,1KHz,2KHz
|
||
|

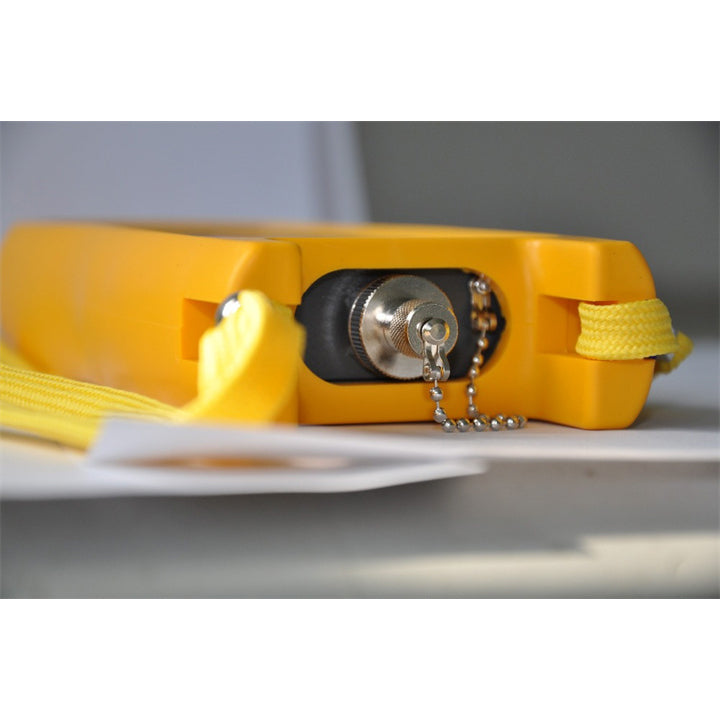

Optical Connector
|
FC/ universal adaptor
|
FC/PC
|
||
|

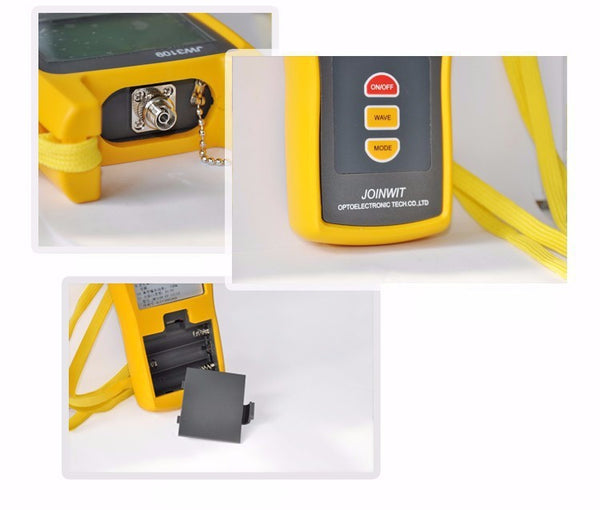

Power Supply
|
Alkaline Battery(3 AA 1.5V batteries)
|
|||
|
Battery Operating Time(hour)
|
45
|
|||
|
Operating Temperature(°C)
|
-10~+60
|
|||
|
Storage Temperature(°C)
|
-25~+70
|
|||
|
Dimension(mm)
|
175x82x33
|
|||
|
Weight (g)
|
295
|
|||
|
OpticTrans Recommendation
|
||||
|
JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.
|
||||
Package Items
|
MODEL
|
INCLUDES
|
|
All JW3109 Models
|
JW3109 Optical Light Source, Protective Rubber Boot,User Manual, Soft carrying case.
|
Warranty : 3 months.
