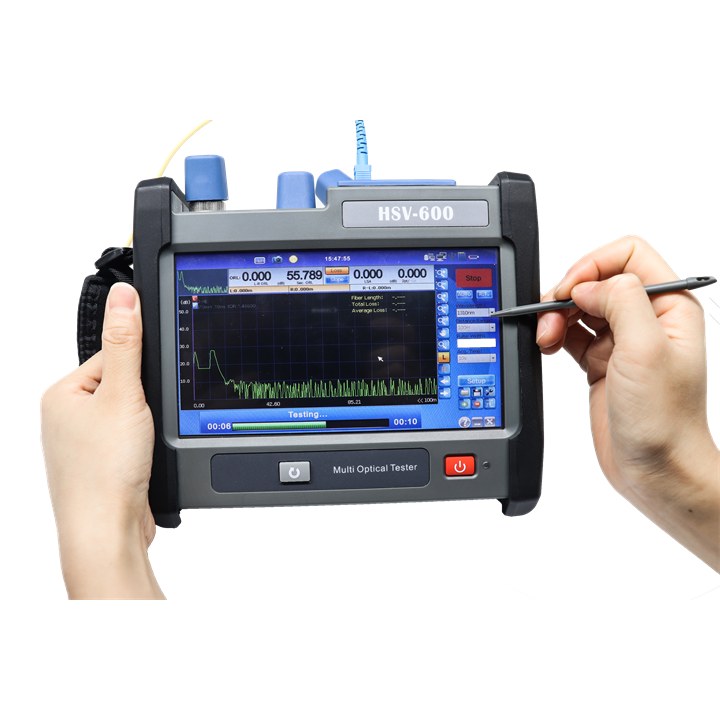

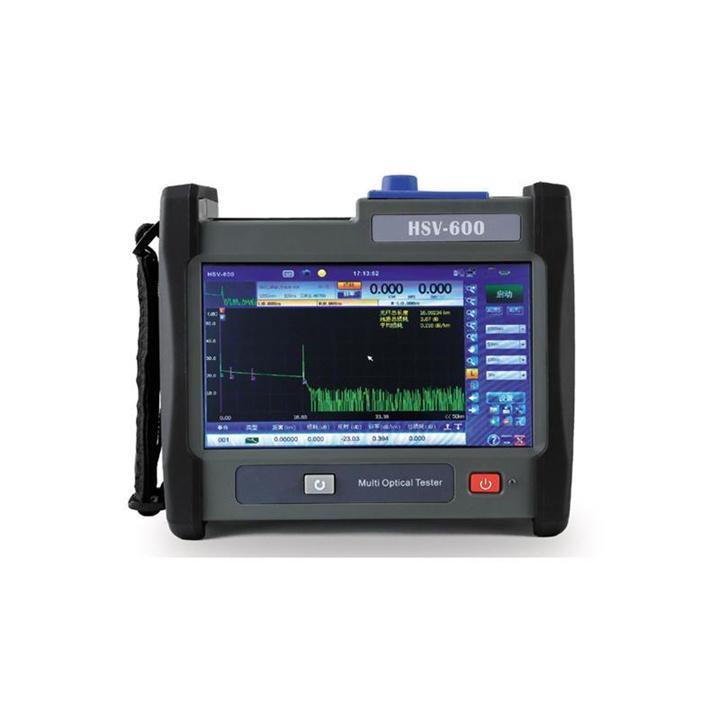

hand-held OTDR HSV-630A OTDR 1310/1550/1625nm SM OTDR on live test
- 7-inch full touchscreen; Professional and efficient UI (user interface) and UE (user experience)

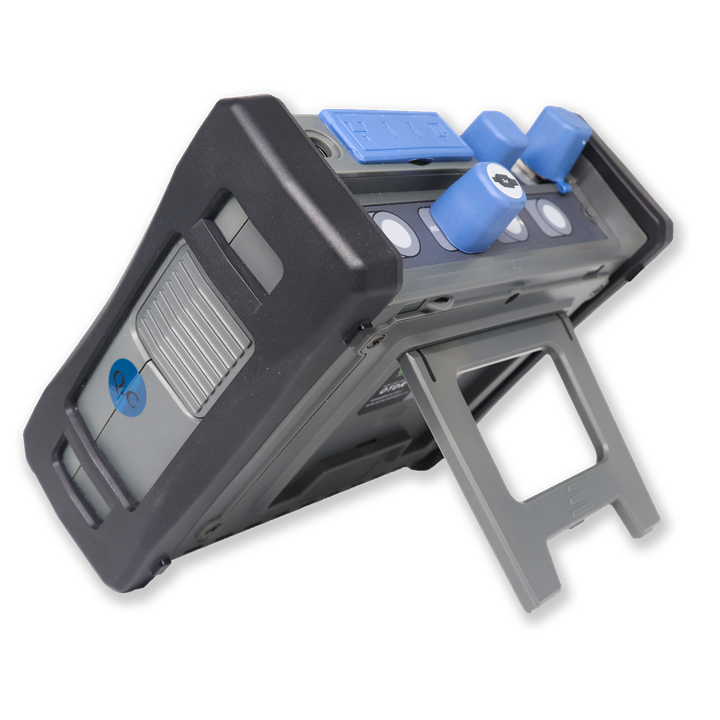

- Handy, lightweight, fully functional, tablet-inspired design
- Excellent optical performance: Event dead zone: minimum 0.8m;
- Dynamic range: 37dB/35/35dB
- Resolution with the shortest distance:5 cm
- 12-hour operating time
- Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe
Specifications
|
Model |
HSV-610 |
HSV-620 |
HSV-630 |
HSV-630A/B/C |
HSV-640 |
|
Wavelength(nm) |
1310/1550 |
1310/1550 |
1310/1550 |
1310/1490/1550/1625/1650 |
1310/1550 |
|
Wavelength Accuracy(nm) |
± 20 |
||||
|
Dynamic (dB) |
32/30 |
35/33 |
37/35 |
37/35/35 |
40/38 |
|
Event Dead Zone(m) |
1.5 |
1 |
0.8 |
0.8 |
0.8 |
|
Atten. Dead Zone (m) |
6 |
5 |
4 |
4 |
4 |
|
Pulse width |
3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1µs, 2µs, 5µs, 10µs, 20µs |
||||
|
Distance range (km) |
100m, 400m ,1.5km, 3km, 6km, 12km, 25km, 50km, 100km ,200km, 400km |
||||
|
Sampling resolution(m) |
0.1(HSV-610/HSV-620),0.05(HSV-630/HSV-630A/HSV-640/HSV-670/HSV-680) |
||||
|
Sampling Points |
128000 |
256000 |
|||
|
Power Meter |
Calibrated Wavelength: 1310nm/1550nm Working wavelength: 850nm/980nm/1300nm/1310nm/1490nm/1610nm Dynamic: -70dB~+10dB, ±0.17dB accuracy |
||||
|
VFL |
650nm±10nm, 10mW |
||||
|
Fiber inspection probe |
520X, USB 2.0 |
||||
|
Stabilized light source |
HSV-610/HSV-620:1310/1550nm, -11dBm; HSV-630/HSV-640/HSV-670/HSV-680:1310/1550nm, -4dBm; HSV-630A/B/C: 1310/1490/1550/1625/1650nm, -4dBm |
||||
|
Display |
7 in (178 mm) outdoor-enhanced touch screen, 800 x 480 TFT |
||||
|

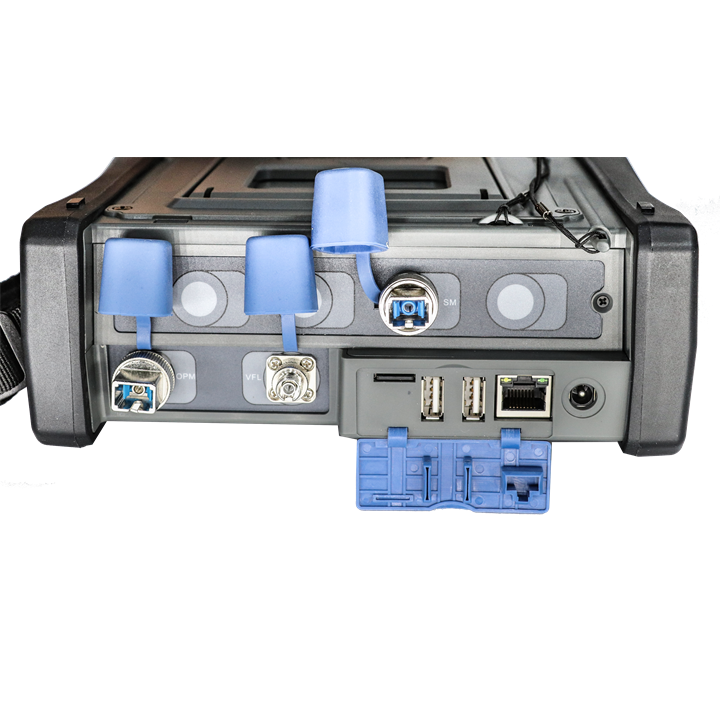

Interfaces |
USB 2.0 ports RJ-45x1 x2; LAN ,10/100 Mbit/s, Macro SD x1 |
||||
|
Storage |
8 GB internal memory (80 000 OTDR traces), 8 GB SD card (80 000 OTDR traces) |
||||
|
Battery Life |
7.4 v,5300mAh lithium battery pack,39.22Wh supports 12 hrs, continuous (at max charge) |
||||
|
Power supply |
Power supply AC/DC adapter, AC input 100-240 V, 50-60 Hz, DC out 12V,1.5A |
||||
|
Applicable environment |
Operating temperature:-10℃—+50℃,storage temperature:Relative humidity:0%-95% |
||||
|
Dimensions (WxHxD) |
196*172*72mm |
||||
|
Weight(including battery) |
<1.5kg |
||||
|
Language |
Chinese, English, Spanish,Russian,Italian,Portuguese,(option for French, Russian, German, Korean & Arabic) |
||||
Warranty : 1 year.
