HUAWEI 19 "inch OLT GPON OLT MA5608T 1G DC GPBD 8 Ports
HUAWEI 19 "inch OLT GPON OLT MA5608T 1G DC GPBD 8 Ports
Couldn't load pickup availability
HUAWEI 19 "inch OLT GPON OLT MA5608T 1G DC GPBD 8 Ports
Configs:

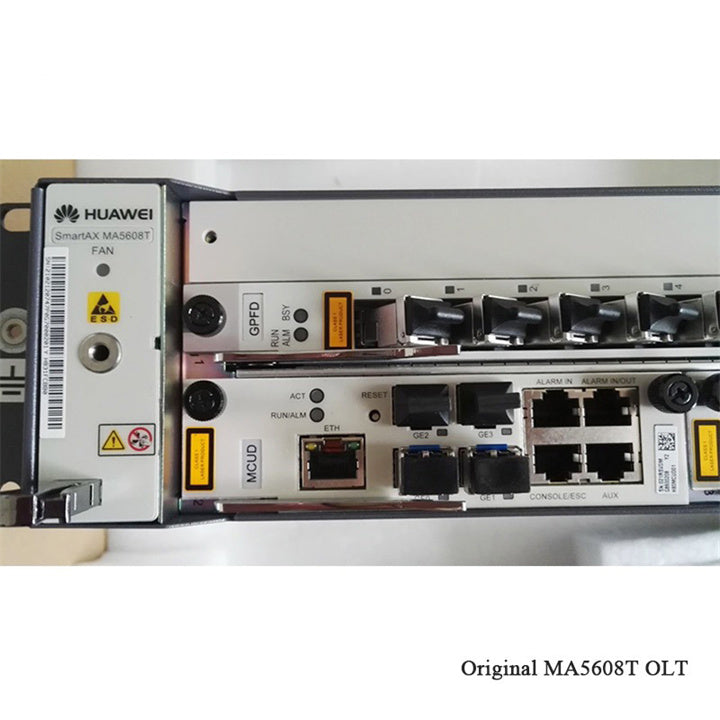

HUAWEI SMARTAX MA5608T
1*MA5608T Chassis
1*MCUD 1G Control Board
1*MPWC DC Power Optical
Other accessories ( Power cable ,earth cable , patchcords,ribbon banding ,screws etc.
MA5608T Positioning
Deployed at the remote end, including the base stations (BSs) and outdoor environments
2 U high, and supports a maximum of two service board
Connected to MxUs or ONTs and used in FTTB/C and FTTH scenarios
Connected to xDSL terminals and phones and used in the MSAN/DSLAM scenario
Boards supported by MA5608T:
|
Board Type |
Silk Screen |
Full Name |
Slot |
|
Control board |
MCUD |
Mini Control Unit Board |
2, 3 |
|
MCUD1 |
Mini Control Unit Board |
||
|
Service board |
ADPM |
64-port ADSL2+ over POTS Service Board |
0, 1 |
|
ADPE |
64-port ADSL2+ over POTS Service Board |
||
|
H805ADPD |
64-port ADSL2+ over POTS Service Board |
||
|
VDPM |
64-port VDSL2 over POTS Service Board |
||
|
VDQM |
64-port VDSL2 over ISDN Service Board |
||
|
VDPD |
64-port VDSL2 over POTS Service Board |
||
|
VDPE |
64-port VDSL2 over POTS Service Board |
||
|
H805GPBD |
8-port GPON OLT Interface Board |
||
|
GPFD |
16-port GPON OLT Interface Board |
||
|
GPBH |
8-port GPON OLT Interface Board |
||
|
XGBC |
4-port 10G GPON OLT Interface Board |
||
|
H802EDTB |
16 port SHDSL and 16 port E1 Service Board |
||
|
ASPB |
64-port VOIP Subscriber Board |
||
|
CVME |
48-port VDSL2&POTS Combo Board |
||
|
CAME |
48-port ADSL2+&POTS Combo Board |
||
|
SPUB |
MPLS service Process Unit Board |
||
|
ETHB |
Ethernet Service Access Board |
||
|
OPGD |
48-port GE/FE Optical Interface Board |
||
|
TOPA |
TDM Traffic over PSN Board |
||
|
SHLM |
16-port SHDSL.bis Service Board |
||
|
Power board |
MPWC |
Double DC power board |
4 |
Warranty : 1 year.
