Optical Fiber Fusion Splicer - FUJIKURA 88S+ Splicing Machine (With CT50 Cleaver)
Fujikura 88S+ is a fusion splicer with a high precision lenses, which provide an accurate core-to-core alignment. Also, these lenses allow the splicer to discriminate between fiber types.
The 88S possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The tool finds the true core position and achieves the consistent lower splice loss. The device features fiber discrimination function: it automatically identifies the optimum arc discharge parameters in accordance with the fiber type.
Fujikura 88S has faster automated features that reduce installation time. The user can complete the entire splicing process without touching the tool and only moving the fiber. The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out.
Features
- Splicing time: 7-9 sec (SM FAST mode).
- Heat time: 13-15 sec (for 60 mm sleeves).
- Core alignment technology.
- Advanced image processing technology.
- Fiber discrimination function.
- The faster automated features.
- Time for opening wind protector is 80% lower comparing to the Fujikura 80S.
- Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.
- Easy fiber protection sleeve positioning.
- The lid of the carrying case may be used as a work table.
- Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.
- The sheath clamp is compatible with loose tube fiber.
- Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.
- The tool can connect two cleavers simultaneously.
- Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
- Operation manual is installed into the splicer.
- Battery life increased up to 500 recharge cycles.
- Increased electrode lifetime – up to 5000 splicing cycles with one set.
- 5-inch color TFT touch screen display.
Technical Specifications
| Fiber alignment method | active core alignment | |
| Applicable fiber | fiber type | Single mode optical fiber |
| Multi mode optical fiber | ||
| cladding diameter | 80 μm - 150 μm | |
| Applicable coating | sheath clamp | coating diameter: max. 3 000 μm |
| cleave length: 5 mm - 16 mm | ||
| Fiber splice performance | splice loss | ITU-T G.652: avg. 0.02 dB |
| ITU-T G.651: avg. 0.01 dB | ||
| ITU-T G.653: avg. 0.04 dB | ||
| ITU-T G.655: avg. 0.04 dB | ||
| ITU-T G.657: avg. 0.02 dB | ||
| splice time | SM FAST mode: avg. 7 sec - 9 sec | |
| AUTO mode: 14 sec - 16 sec | ||
| Applicable protection sleeve | sleeve type | heat shrinkable sleeve |
| sleeve length | max. 66 mm | |
| sleeve diameter | max. 6.0 mm before shrinking | |
| Sleeve heat performance | heat time | 60 mm slim mode: avg. 9 sec - 10 sec |
| 60 mm mode: avg. 13 sec - 15 sec | ||
| Fiber tensile test force | approx. 2.0 N | |
| Electrode life | approx. 5 000 splices | |
| Dimensions (W × D × H) | 170 × 173 × 150 mm | |
| Weight | 2.8 kg (with battery) | |
| Environmental condition | temperature | operate: -10°C - +50°C |
| storage: -40°C - +80°C | ||
| humidity | operate: 0% - 95% RH non-condensing | |
| storage: 0% - 95% RH non-condensing | ||
| altitude | max. 5 000 m | |
| AC adaptor | input | AC 100 to 240 V, 50/60 Hz, max. 1.5 A |
| Battery pack | type | rechargeable lithium-ion |
| output | approx. DC 14.4 V / 6,380 mAh | |
| capacity | approx. 300 splice and heat cycles | |
| temperature | recharge: 0°C - 40°C | |
| storage: -20°C - +30°C | ||
| battery life | approx. 500 recharge cycles | |
| Display | LCD monitor | TFT 5 inches with touch screen |
| magnification | 200 to 300x | |
| Illumination | V-grooves | LED lamp |
| Interface | PC | USB2.0 Mini B type |
| external LED lamp | USB2.0 A type approx. DC 5 V, 500 mA |
|
| ribbon stripper | Mini DIN 6 pin DC 12 V, max. 1 A |
|
| wireless | Bluetooth 4.1 LE | |
| Data storage | splice mode | 100 splice modes |
| heat mode | 30 heat modes | |
| splice result | 20 000 splices | |
| splice image | 100 images | |
| Screw hole for tripod | 1/4-20UNC | |
| Other features | automatic functions | splice mode select by fiber type analysis |
| discharge power calibration | ||
| wind protector: open/close | ||
| sheath clamp: open | ||
| heater lid: open/close | ||
| heater clamp: open/close | ||
| reference guide | video and PDF file stored in splicer | |
| sheath clamp | easy sleeve positioning clamp | |
| electrode | replaceable without tool | |
Package Contents

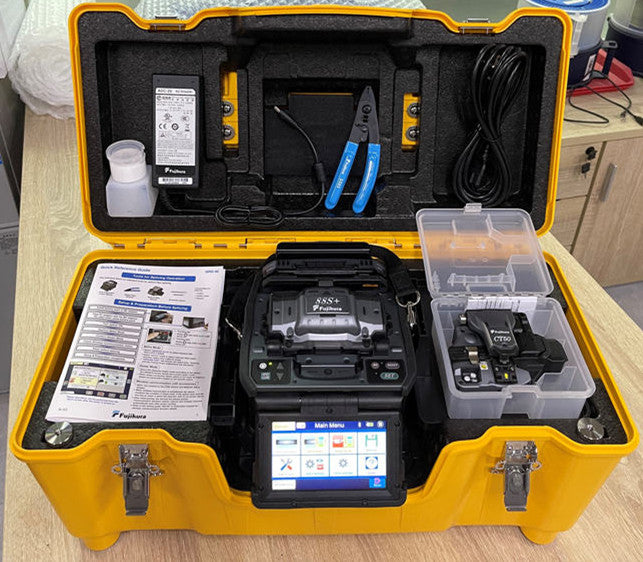

- Fusion Splicer Fujikura 88S — 1 pc.
- Battery (BTR-15) — 1 pc.
- AC Adaptor (ADC-20) — 1 pc.
- AC Power Cord (ACC-14, 15, 16 or 17) — 1 pc.
- USB Cable (USB-01) — 1 pc.
- Fusion Splicer Strap (ST-02) — 1 pc.
- Spare Electrodes (ELCT-16B) — 1 set.
- Fiber Holder Set Plate (SP-03) — 1 set.
- Carrying Case (CC-39) — 1 pc.
- Work Tray Left (WT-09L) — 1 pc.
- Work Tray Right (WT-09R) — 1 pc.
- Work Tray J-Plate (JP-09) — 1 pc.
- Tripod Screw (TS-03) — 1 pc.
- Carrying Case Strap (ST-03) — 1 pc.
- Alcohol Dispenser (AP-02) — 1 pc.
- Quick Reference Guide (QRG-02-E, C or J) — 1 pc.
- Single Fiber Stripper (SS-03 or SS-01) — 1 pc.
- Optical Fiber Cleaver (CT-50) — 1 pc.
- Fiber Scrap Collector (FBD-05) — 1 pc.
- Fiber Setting Plate (AD-10-M24) — 1 pc.
- Case for Cleaver (CC-37) — 1 pc.
- Hexagonal Wrench (HEX-01) — 1 pc.
