SKYCOM

Skycom Hi-Precision Fusion Splicer T-208H

Skycom Hi-Precision Fusion Splicer T-208H

Regular price $799.00
Regular price $970.00 Sale price $799.00
Sale Sold out
Shipping calculated at checkout.

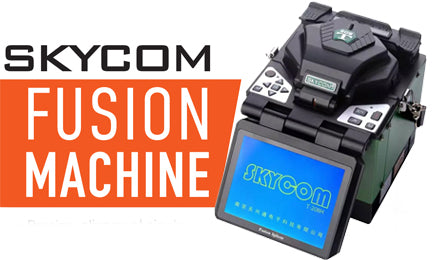

Splicing Machine Skycom T-208H

SKYCOM FUSION SPLICER T-208H

  • High Speed: 9 Secs Rapidly Splicing, 25 Secs Quick Heating;
  • Greater Accuracy: Digital Imaging and Vision Processing Metrology;
  • 5 inches high Resolution colorful LCD display;
  • 3-in-1 Universal Holder: Applicable Cleaved Length up to 5mm;
  • 5200mAh, Ultra-high Battery;
  • Multistage Amplification, Magnification up to 520X Which Makes Clear Image

Specifications

Applicable Fibers

SM, MM, NZ-DS, EDF, Pigtail, FTTH drop cable SC/LC/FC connector (optional function)

Average Splice Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Return Loss

≥60dB

Quick Splicing Time

9 seconds

Quick Heating Time

25 seconds

Splicing mode

Full-automatic , automatic, manual

Heating mode

 Automatic, manual

Splicing Program

 50 groups

Operating Language

Chinese, English, French, Portuguese, Spanish, Russian

Operating Conditions

-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)

Monitor

5 inches high resolution colorful LCD display

Fiber Image

X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times

Estimated Splice

Available

Tension Test

2.0N(200gf)(Standard)

Storage of Splice Result

6,000 groups of latest splice results

Power Supply

AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) ;Inner lithium battery: 11.1V, 5.2Ah

Optical Fiber Fixture



3-in-1 cutting fixture; Multipurpose 1+N fixture (Optional for SC/LC/FC connector)

Dimensions

130(W)*135(D)*130(H)mm; Package size: 52*32*30cm

Weight

1.75kg (without battery pack)

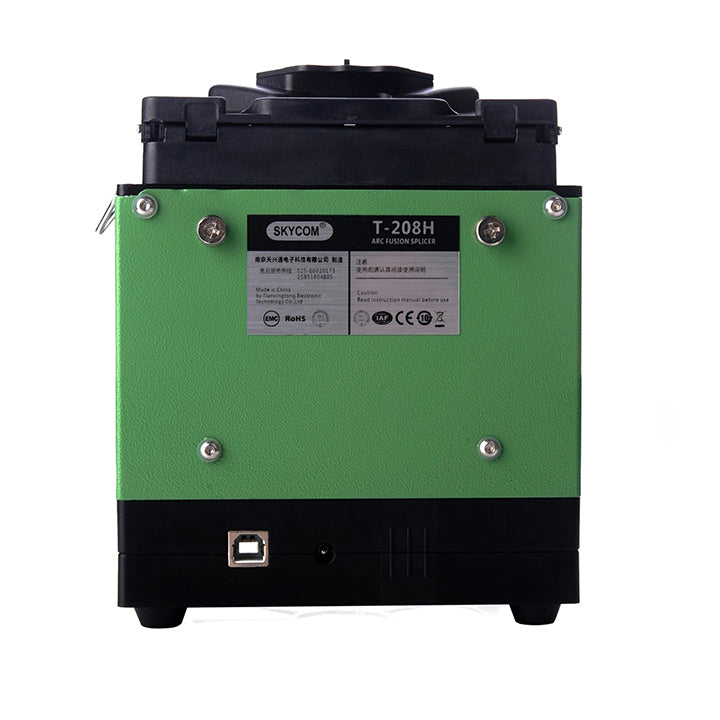

Fiber Optic Splicer Skycom T-208H

Package Includes

Fusion Splicer T-307H | Fiber Cleaver | Spare Electrode
Wire Stripping Pliers | Fiber Stripper | Carrying Case
Cooling Tray | Straps | Power Adapter | User Manual
