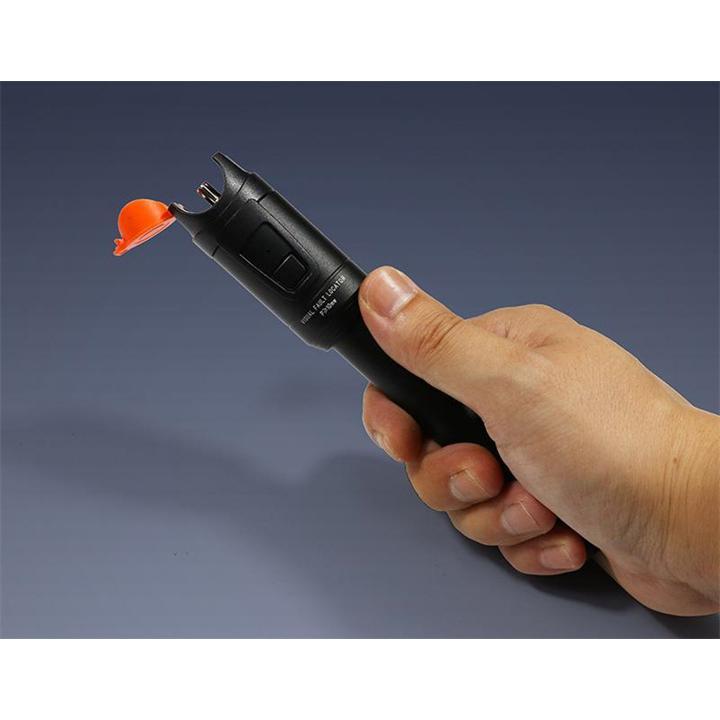

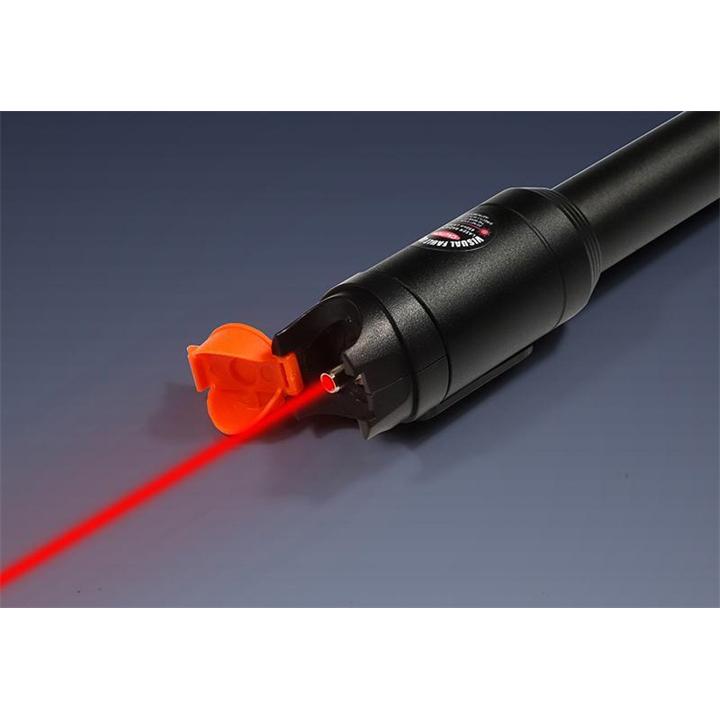

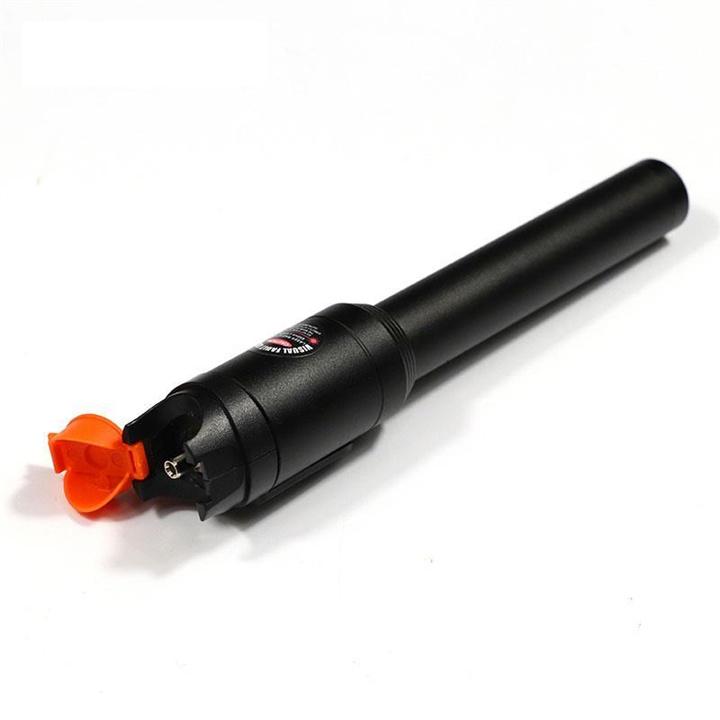

20mW VFL Visual Fault Locator Pen-Type Visual Fault Finder
SM-V2 VFL is designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables;Finding the faults of OTDR.
Specifications
|
Type |
Visual fault locator or Pen-type Visual Fault Finder |
|
Central Wavelength |
650nm+-10nm (635nm can be required on request) |
|
Emitter Type |
FP-LD |
|
Output Power |
Optional choice for 1mw, 5mw,10mw 20mw 30mw on actual needs |
|
Optical Connector |
2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
|
Operating Model |
Both CW and Pulse available |
|
Pulse Frequency |
2~3Hz |
|
Power Supply |
2 AAalkaline batteries |
|
Battery Operating Time |
60 hours |
|
Operating Temperature |
-10~+45 (oC) |
|
Storage Temperature |
-40~+70 (oC) |
|
Dimension (mm) |
15X180 |
|
Weight |
120g(Without battery) |
Remark: Colors can be customized on request when meets certain qty!
Visual fault locator Standard Packages
|
MODEL |
INCLUDES |
|
SM-V2 |
Main Unit (Original color), User Manual, Cotton swabs and Soft Carrying case |
